Specialized S-Works S-Works Epic Hardtail

Specialized S-Works S-Works Epic Hardtail
This item is currently not available.

Details

What do you call a hardtail race bike so light it can put most road bikes to shame? Well, we suppose you could call it a hardly-there-tail, but it actually goes by the name of the S-Works Epic Hardtail. Even while barely registering on the scale, we’ve loaded it with enough capability to do quite a number on the trail. Welcome to having your cake and eating it too—S-Works style.

- Ridiculously capable and refreshingly compliant with a weight that'll make most road frames jealous, the FACT 12m carbon S-Works Epic Hardtail frame isn't just light, it's the lightest production hardtail frame ever produced.

- Pairing 100 millimeters of the most efficient travel on earth with RockShox's svelte-yet-stiff SID SL Ultimate chassis, the RockShox SID SL Ultimate BRAIN fork serves as the pinnacle of XC-race suspension perfection.

- The pinnacle of drivetrain performance, SRAM's XX1 Eagle AXS combines next-gen wireless technology, incredibly accurate shift performance and game-changing versatility to drastically redefine the riding experience.

- Weighing a remarkable 1240 grams, the Roval Control SL wheelset not only increases strength and reduces weight, but also features a new 29-millimeter-wide internal width rim profile that improves pinch-flat resistance by 22-percent.

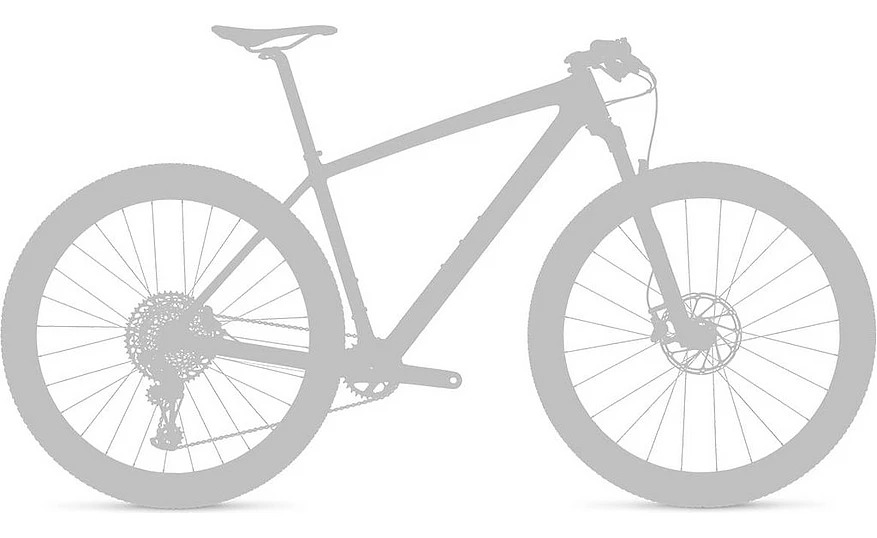

Geometry

Sizes:
SmallMediumLargeX-Large
Crank Length 170mm 175mm 175mm 175mm
Handlebar Width 760mm 760mm 760mm 760mm
Stem Length 60mm 70mm 70mm 70mm
Saddle Width 155mm 143mm 143mm 143mm
Seatpost Length 350mm 400mm 400mm 400mm
Stack 608mm 608mm 622mm 636mm
Reach 405mm 430mm 455mm 480mm
Head Tube Length 95mm 95mm 110mm 125mm
Head Tube Angle 68.5° 68.5° 68.5° 68.5°
BB Height 309mm 309mm 309mm 309mm
BB Drop 63mm 63mm 63mm 63mm
Trail 101mm 101mm 101mm 101mm
Fork Length, Full 506mm 506mm 506mm 506mm
Fork Rake/Offset 44mm 44mm 44mm 44mm
Front Center 670mm 695mm 725mm 755mm
Chainstay Length 430mm 430mm 430mm 430mm
Wheelbase 1092mm 1117mm 1148mm 1178mm
Top Tube Length, Horizontal 579mm 604mm 633mm 662mm
Bike Standover Height 762mm 792mm 816mm 847mm
Seat Tube Length 400mm 430mm 470mm 520mm
Seat Tube Angle 74° 74° 74° 74°
Sizes:
InchesCMSIZE
4'10" -5'1" 148 - 155 X-Small
5'2" - 5'5" 158 - 165 Small
5'5" - 5'10" 165 - 178 Medium
5'10" - 6'1" 178 - 185 Large
6'1" - 6'4" 185 - 193 X-Large
6'3" - 6'6" 191 - 200 XX-Large

Specs

Frame S-Works FACT 12m, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing
Fork RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel
Rims Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Hubs Front: Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull t-head
Rear: Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull t-head
Spokes DT Swiss Aerolite
Tires Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Crankset Quarq XX1 Powermeter, DUB, 170/175mm, 34t
Shifters SRAM Eagle AXS Rocker Paddle
Rear Derailleur SRAM XX1 Eagle AXS
Cassette/Freewheel Sram XG-1299, 12-Speed, 10-52t
Chain SRAM XX1 Eagle
Brakes SRAM Level Ultimate, 2-piston caliper, hydraulic disc
Handlebars S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
Tape/Grips Specialized Trail Grips
Stem S-Works SL, alloy, titanium bolts, 6-degree
Seatpost S-Works FACT carbon, 10mm setback, 30.9mm
Saddle Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
Accessories & Extras SWAT EMT Cage-Mount Tool

* Subject to change without notice.
